Automatic Granule Feeding Z Type Bucket Elevator Z Bucket Conveyor

Brand Name : DY

Model Number : DY-2L

Certification : CE

Place of Origin : China

MOQ : 1

Price : USD5800

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 10 sets/ 30 days

Delivery Time : 7-15 work days

Packaging Details : Wooden Package

Belt Material : al Stainless Steel

Special Feature : easy cleanliness

Speed : Adjustable

Shop, Energy & Mining Dimension(L*W*H) : according model

Warranty : 1.5 Years

Material of Bucket : Carbon Steel, Stainless Steel, Wearable Steel, Plastic

Color : As your request

Load capacity : Variable

Usage : Conveying Products

Contact Now

Automatic Granule Feeding Z-Type Bucket Elevator

Automatic Granule Feeding Z Type Bucket Elevator Z Bucket Conveyor

Product Introduction

Z shape bucket elevator is the universally lifting conveying equipment. It is mainly made up of Movement part (bucket and traction belt or chain), Upper part with Transmission Drum, Down parts with Tension Drum, Middle Cabinet, Drive Device and so on.

Automatic Granule Feeding Z Type Bucket Elevator Z Bucket Conveyor

Automatic Granule Feeding Z Type Bucket Elevator Z Bucket Conveyor

Main Features

Obvious features like low power required, effective inflow feeding & guiding discharge.
It has vast range of application with almost no limitation for lifting material forms and properties. Materials like power, grain or big lump could be all applicable .Also its good sealing condition could effectively reduces the environmental pollution.
Excellent running reliability. Advanced design and processing method ensure the running reliability of the complete machine.
Long service life. The design of this machine ensures that the materials is seldom scattered while feeding and discharging, which reduces the mechanical wearing.

Automatic Granule Feeding Z Type Bucket Elevator Z Bucket Conveyor

Technical Parameter

Item

DY-2L

DY-5L

DY-7L

Bucket Volume

2L

5L

7L

Production Capacity

1-6m³/h

1-12m³/h

1-15m³/h

Bucket Material

ABS, Stainless steel 304 or Carbon Steel

Bucket Working Speed

9-11m/min (adjustable)

Machine frame material

Full stainless steel 304 or paint carbon steel

Outlet height

≤20m (could be customized by your request)

Input and Outlet quantity

Could be customized by your request

Motor power

0.75-7.5kw (according to the bucket model)

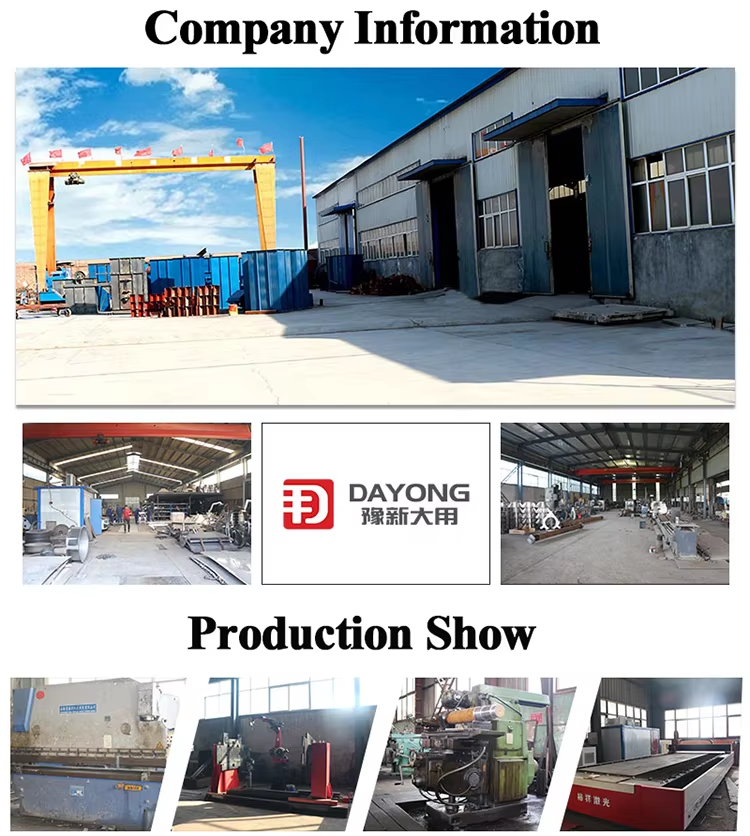

Company Information

Automatic Granule Feeding Z Type Bucket Elevator Z Bucket Conveyor

Xinxiang Dayong Vibration Equipment Co., Ltd., located in Xinxiang city, Henan province, China, which is an enterprise integrated scientific researching, device producing and product marketing. We mainly produces DY series vibrating screen, linear vibration sieve, test sieve, vibration conveyor, vibration feeder and other handling equipment.


Our company mainly produces the products for sieving, conveying, elevating, and crushing equipment. Our company has strong technical force, with the strategy aiming to obtain enterprise reputation, be bold in innovative technology and provides good service, and our company has become a well-known enterprise in the industry.

Automatic Granule Feeding Z Type Bucket Elevator Z Bucket Conveyor

Automatic Granule Feeding Z Type Bucket Elevator Z Bucket Conveyor

Packaging & Shipping

Automatic Granule Feeding Z Type Bucket Elevator Z Bucket Conveyor

Our Services

Pre-sale service:
We will provide you with the prior plan, process flowchart design and production equipment in line with your special needs.


Sale-service:
We will guide the equipment installation, commissioning and staff training.


After-sale service:
We will regularly pay return visit to customers for establishing a long-term and friendly relationship.
All machines have 18 months warranty to make sure your machine work well.

FAQ

To choose the suitable model, please tell us:
Name and feature of the raw material?
Conveying lengths?
Handling capacity: kg /h, L/h
The Inclined angle you want?
Note: You had better send us the relevant pictures about the details.
