Product Description
Screw conveyor is devided in two types of horizontal conveyor and vertical conveyor, its mainly used for all kinds of powder, particles, small block and loose material transport and vertical lifting.
Screw conveyor is suitable for Powder, granule, patch and scattered material such as cement, dust coal, food, fertilizer, inder, sand, The temperature must be less than 200 °C. Not suitable for the material of easily deteriorated, viscosity and easily lump.
Detailed Photos
Machine Feature
1. Using double electric motors : feeding motor & vibrating motor, separately controlled.
2. Product funnel is design to be adjustable vibrate, which lead to avoid product blocking and improve the adaptation of different products.
3. Product funnel can separate from the tube for easy assembly.
4. Special anti-dust design to protect bearing from dust.
5. In order to convenience machine cleaning, following functions are added in: auger can reverse for emptying the tube, product discharge gate is mounted in the bottom of the funnel, auger can be disassemble for washing.

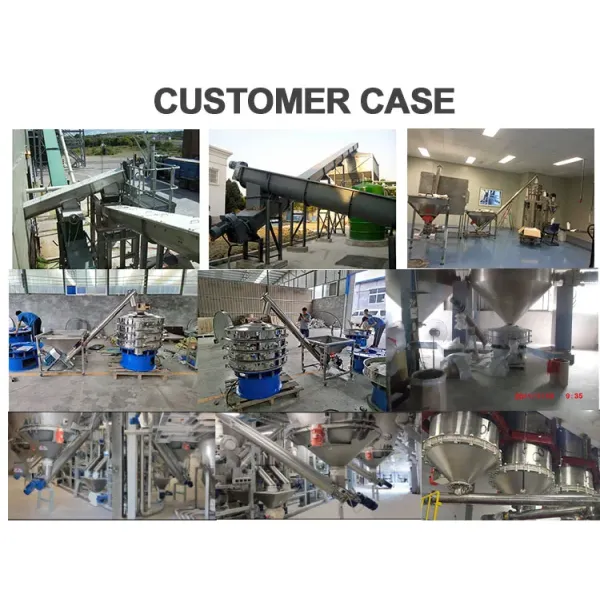

Customer Case
Advantages:
1.Deal for conveying dry to semi-fluid bulk materials - free flowing to sluggish
2.Cost-effective when compared to other conveying devices such as belt, pneumatic or aeromechanical
3.Efficiently distributes bulk materials to various locations using multiple inlet and discharge points
4.Totally enclosed for dusty, corrosive or hazardous environments
Product Parameters
| Model |
Diameter
(mm) |
The distance of blades(mm) |
Speed
(rpm) |
Capacity
(t/m³) |
Speed
(rpm) |
Capacity
(t/m³) |
Speed
(rpm) |
Capacity
(t/m³) |
Speed
(rpm) |
Capacity
(t/m³) |
| |
D |
S |
n |
φ=0.33 |
n |
φ=0.33 |
n |
φ=0.33 |
n |
φ=0.33 |
| LS100 |
100 |
100 |
140 |
2.2 |
112 |
1.7 |
90 |
1.4 |
71 |
1.1 |
| LS125 |
125 |
125 |
125 |
3.8 |
100 |
3.0 |
80 |
2.4 |
63 |
1.9 |
| LS160 |
160 |
160 |
112 |
7.1 |
90 |
5.7 |
71 |
4.5 |
56 |
3.6 |
| LS200 |
200 |
200 |
100 |
12.4 |
80 |
9.9 |
63 |
7.8 |
50 |
6.2 |
| LS250 |
250 |
250 |
90 |
21.8 |
71 |
17.2 |
56 |
13.6 |
45 |
10.9 |
| LS315 |
315 |
315 |
80 |
38.8 |
63 |
30.5 |
50 |
24.2 |
40 |
13.4 |
Application Industry
Machine Usage
--This machine is suitable for transfer many kinds of powder such as:
--Milk powder, flour, rice powder, protein powder, Seasoning powder, chemical powder, medicine powder, coffee powder, soy flour Etc.
Company Profile
Related Products
Our Service
we are manufacturer of crusher, sieving and conveying machine.
Most of our products are customized as customers' request, pls advice your material, capacity, bulk density.
we'd like to offer you best suitable machine.
